Features

●Active area：Φ16 mm

●Response wavelength：400 nm～1100 nm

●Fast response speed

●High detect sensitivity

●High reliability

●Compact size


Application

●Laser orientation

●Other detect

Parameter

Symbol

Rating

Unit

Detector Voltage Supply

VR

0～+55

V

Operating Temperature

TC

-40～+50

℃

Storage Temperature

TSTG

-50～+65

℃

Maximum Optical Input Power

Pin

10

mW

Module operating Voltage

VCC

+12

V

Power consumption

PW

500

mV

Soldering Temperature(time)

—

300（10s）

℃

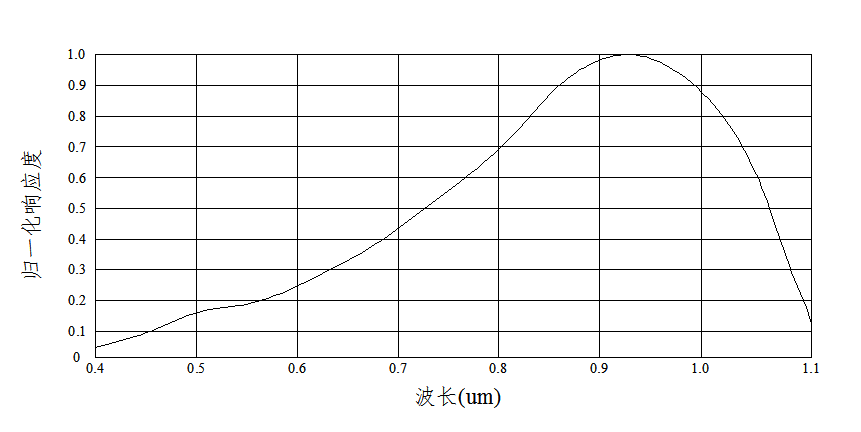

Typical Performance Curves(TC=22±3℃,VCC=+12V,VR=+50V)
