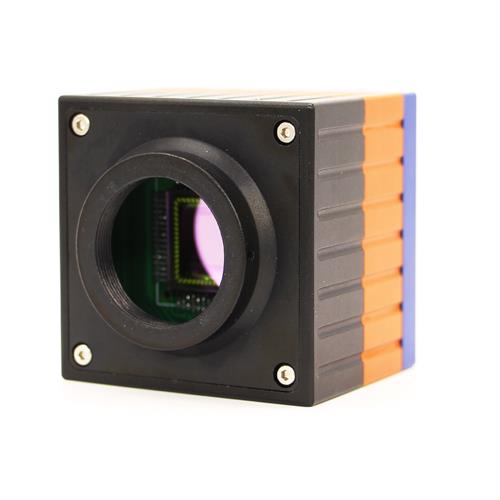

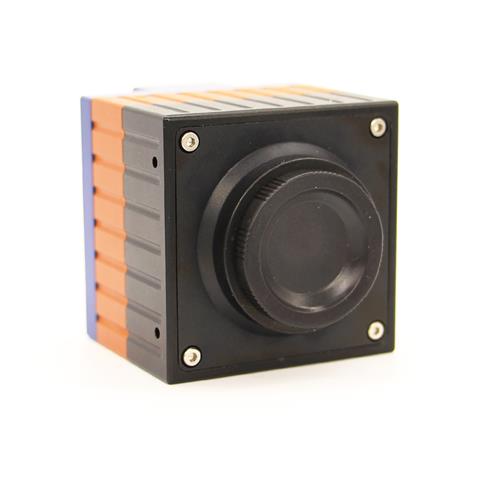

Model

GS-SW3201730-UC

Detector type

InGaAs FPA

Spectral range

0.9~1.7um

Pixel

320 x256

Pixel pitch

30μm

Active area

9.6mm x 7.68mm

Quantum efficiency

>70%

Pixel Operability

>99.5%

Cooler type

uncooled

Maximum frame rate

200Hz/ Custom

ROI frame rate

160*120@≥500Hz

Exposure time

10μs—1/ frame,

custom

Digital output format

Raw 14 bit

Analog video output

PAL / NTSC

Onboard image processing

frame selection;

Synchronous selection;

Single pixel correction; two pixels correction;

Contrast/brightness adjustment (auto or manual)；

Enhance、 image polarity selection；

test mode、replace defective pixels；

Configuration information saved, Cross indication.

External trigger port

TTL

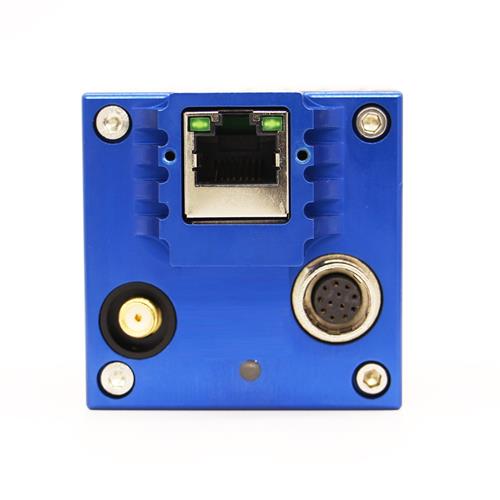

Camera output

Camera Link/ GigE

raw 14 bit

Mount interface

4×M2.5

Lens mount

C

Power supply

12V±3V DC

Consumption

＜3 W /5W(GigE)

Operation temperature

-40℃～+60℃

Storage temperature

-50℃～+70℃

weight

＜165g(no lens)

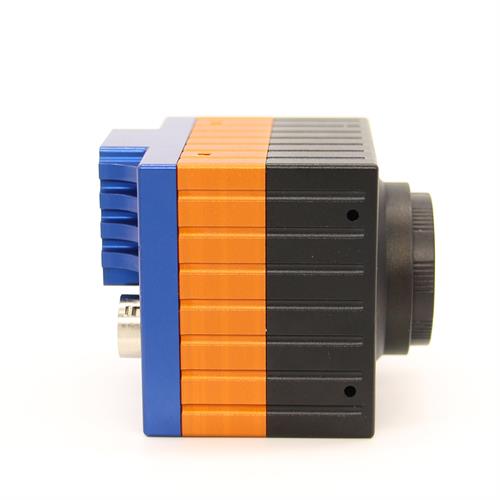

External size

50mm x 50mm x 55mm
