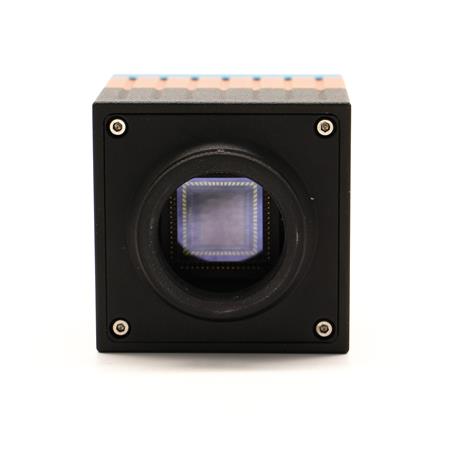

SWIR camera use InGaAs FPA，with long time reliability and best image quality, it is uncooled near infrared cameras for customers, the pixel resolution is 640x512 . Also, we provide the secondary development and perfect technical support for it.
Advantages
●High sensitivity InGaAs FPA
●640x512 pixels resolution
●5um/15um pixel size
●Spectral range: 0.4~1.7um/0.9~1.7 um (1.2~2.2um available)
●Automatic gain control
●Digital image enhancement
●Board load non-uniformity correction
●Low consumption, small size
Applications
●Surveillance
●Vision enhancement
●Laser detector
●Range Finding
●Airborne / vehicle Payload
●Hand Held Goggles
●Beam Profiling
●Semiconductor Inspection
●Wafer detection
●Solar Cell Inspection
●Astronomy
●Hyperspectral Imaging
●Thermography
Specifications
|
Model |
GS-SW6401715-UC |
GS-SW6401705-UC |
|
Detector type |
InGaAs FPA |
InGaAs FPA |
|
Spectral range |
0.9~1.7um |
0.4~1.7um |
|
Pixel |
640x512 |
640x512 |
|
Pixel pitch |
15um |
5um |
|
Active area |
9.6x7.68 mm |
3.2 x 2.56mm
|
|
Quantum efficiency |
>70% |
>70% |
|
Cooler type |
uncooled |
uncooled |
|
Maximum frame rate |
50/ 100 Hz |
≥100Hz @640 x 512
|
|
Exposure time |
1us ~ 1/frame |
105us–3885us
|
|
Digital output format |
Raw 14 bit |
Raw 12 bit |
|
Digital interface |
Camera Link/ GigE
|
Camera Link/ GigE
|
|
Lens mount |
C |
C |
|
Power supply |
12V±3V DC |
12V±3V DC |
|
Operation temperature |
-40 ~55 ℃ |
-20 ~50 ℃ |
|
Storage temperature |
-50~65 ℃ |
-40~80 ℃ |
|
weight |
170g(no lens) |
350g(no lens) |
|
External size |
50mm x 50mm x 57mm |
60 mm x60 mm x 64 mm |
