Product advantages |
|
Domestic commercial products |
|
Products have been tested by engineering |
|
Study on infrared characteristics of stealth coating materials |
|
On-site evaluation of infrared stealth performance of aircraft, ships and vehicles
|
Features
Measuring principle: Directional Hemispherical Reflectance (DHR), 20° ± 1° incidence;
Measurement band: optical dual band, 3-5um & 8-12um;
Repeatability: ≤0.01;
Portable design: good ergonomic design, good operating feel;
Color touch screen: touch operation, simple display, one-key measurement, easy to operate;
Digital storage: MicroSD card, maximum 2048 records, divided into 8 groups, TXT file format, convenient for subsequent analysis on PC.
Specifications
|
Model |
RLK650 |
|
Principle |
Directional Hemispherical Reflectance (DHR), 20°±1°incidence; |
|
Spectral Response |
3-5um & 8-12um; |
|
Work Mode |
Emissivity/Reflectivity |
|
Repeatability |
≤0.01 |
|
Display Resolution |
0.001 |
|
Screen Type |
3.5 ” TFT LCD touch screen |
|
Measurement Time |
10 seconds (2 data acquisitions per measurement) |
|
Stanby Time |
＜90 seconds |
|
Data Storage |
Micro SD card (8G bytes ), maximum 2048 records, divided into 8 groups |
|
Data Download |
After downloading, 2048 records are saved in 8 TXT files in Micro SD card. |
|
Power Supply |
Li battery, 18V 3AH, continuous working time> 3 hours, replaceable |
|
Operating temperature |
0°～+45°, non-condensing |
|
Storage temperature |
-30°～ +65°, non-condensing |
|
Dimensions |
246mm*290mm*108mm(detector) |
|
Weight |
2.3Kg (detector) |
|

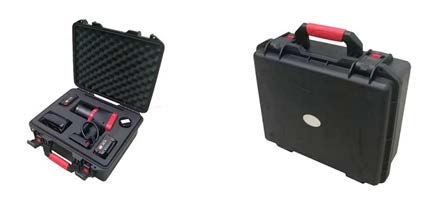

Overall dimensions |
480mm*410mm*200mm (packing box includes battery, charger, standard chip, etc.) |
|
Total Weight |
6.4Kg (packing box including battery, charger, standard chip, etc.) |
