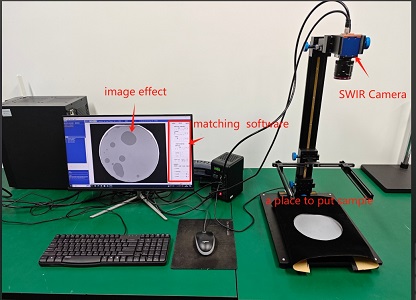

Today's let’s take a closer look at this picture. This is a picture we just took the other day. This is one of the testing equipment we use at Gatherstar.
1.General description: Having a mount is convenient to keep the imaging device (SWIR camera), sample to be tested and short-wave light source in a vertical direction, and the height of the imaging camera can be adjusted; and with lens of different focal length, it is very convenient to observe the sample to be tested.
The light source of the shortwave camera is different from ordinary visible light. If the sample observation requires a light source, you can choose a light source of the appropriate wave-length.The light source can be placed under the sample. We also have a shading cloth to keep the light source concentrated for easy observation of the sample(as you can see on the picture, there is a black cloth).
Our SWIR camera inspecting wafer bonding
2. If you purchase a SWIR, what will you get?
SWIR camera, connecting cable, and matching software with SDK kit.
What kind are there for our SWIR camera? Our SWIR cameras can be divided into the following types according to resolution. 320*256 focal array SWIR; 640*512 focal array SWIR; 1280*1024 focal array SWIR; 1024*1 Linear scan SWIR and 512*1 Linear scan SWIR; The higher the resolution, the finer the image will be.
Our SWIR camera can also be divided into uncooled model and cooled model; the difference is: In low light conditions, the camera needs to increase the exposure time to obtain more signals, but the noise signal will also increase at the same time. If the camera is cooled, the noise signal can be reduced, so that the image quality is also very good. If you have sufficient light, it is enough to use an uncooled model.
3.Other than SWIR itself, what else do you need to capture a image? If you buy a SWIR camera, you will need a matching SWIR lens. If you buy a CL interface camera, you also need an image capture card. We can provide you with a one-stop service or recommend a suitable brand and model. Welcome to learn more~
That is all for today, next time when we have picture worth sharing, we would continue!
